| VOIP(電話節費) IPPBX 方案 | |
 偉穚VOIP Trunk Gateway 產品 |
|
| 奇特威 VOIP Trunk Gateway IP-Phone 產品 |
|
| 奇特威 VOIP IPPBX 產品 |
|
| IPPBX 應用圖示說明 |
| 圖示 | 型號/功能說明 | |
 | 網路電話機 VP-306/-P (-P型可支援POE) 主要規格 : 3-Way Call 3 Account Numbers Call forward Function All Forward/ Busy Forward/ No Answer Message Light Inserts dials Features Conference Call: 3-Way Call Speed dial function Call Waiting function 140 Phone Book Number Call forward: All Forward/ Busy Forward/ No Answer Forward Block Setting: All/ By Time/ Duration Adjust Ringer volume Four types Ringer tone can select Support SIP protocol Upgrade program by FTP/TFTP/HTTP mode Support Auto Provision By FTP/TFTP/HTTP Support G.711/ G.723.1 / G.726 / G.729A/G.729B codec algorithm 64 entries each for incoming call and dialed call LCD display dial data、caller name 、caller number and so on Adjustable volume for both handset and speaker Settings by HTTP web browser VPN Support PPTP client Support Asterisk Open Source IP PBX Support IP PBX Speed Dial:10 Dial Plan Setting Support Hotline Setting Support Alarm Setting Hardware Characteristics LAN interface: 10Mbps/100Mbps WAN interface : 10Mbps/100Mbps Power Supply: Input：100-240V /50/60Hz, Output：DC12V /1A US/Euro/UK/Australian style available. Phone Body Color: Black LCD Size: 2 x 16 Operational Temperature: 0 to +40°C Storage Temperature: -10 to +50°C Relative Humidity: 10-90% non-condensing Unit Dimensions/weight: 23.5cm× 21cm× 8.8cm/ 0.8Kg Box Dimensions/Weight:33.8cm x 20.7cm x 7.4cm/0.4Kg Shipping carton (10 pieces)Dimensions/ Weight: 43cm×38.5cm×34.5cm/1kg Compliance: FCC/CE/LVD Function keys: 25 function keys besides standard keys 0-9,#,＊ Warranty: One year hardware Package Includes & Model VP306 IP Phone Power Adaptor Ethernet Cable User Manual(CD) |  購買 |
 | 網路電話機 VP-310/-P (-P型可支援POE) 主要規格 : 3-Way Call 3 Account Numbers Call forward Function All Forward/ Busy Forward/ No Answer Message Light Inserts dials Features Conference Call: 3-Way Call Speed dial function Call Waiting function 140 Phone Book Number Call forward: All Forward/ Busy Forward/ No Answer Forward Block Setting: All/ By Time/ Duration Adjust Ringer volume Four types Ringer tone can select Support SIP protocol Upgrade program by FTP/TFTP/HTTP mode Support Auto Provision By FTP/TFTP/HTTP Support G.711/ G.723.1 / G.726 / G.729A/G.729B codec algorithm 64 entries each for incoming call and dialed call LCD display dial data、caller name 、caller number and so on Adjustable volume for both handset and speaker Settings by HTTP web browser VPN Support PPTP client Support Asterisk Open Source IP PBX Support IP PBX Speed Dial:10 Dial Plan Setting Support Hotline Setting Support Alarm Setting Hardware Characteristics LAN interface: 10Mbps/100Mbps WAN interface : 10Mbps/100Mbps Power Supply: Input：100-240V /50/60Hz, Output：DC12V /1A US/Euro/UK/Australian style available. Phone Body Color: Black LCD Size: 2 x 16 Operational Temperature: 0 to +40°C Storage Temperature: -10 to +50°C Relative Humidity: 10-90% non-condensing Unit Dimensions/weight: 23.5cm× 21cm× 8.8cm/ 0.8Kg Box Dimensions/Weight:33.8cm x 20.7cm x 7.4cm/0.4Kg Shipping carton (10 pieces)Dimensions/ Weight: 43cm×38.5cm×34.5cm/1kg Compliance: FCC/CE/LVD Function keys: 25 function keys besides standard keys 0-9,#,＊ Warranty: One year hardware Package Includes & Model VP306 IP Phone Power Adaptor Ethernet Cable User Manual(CD) | 購買 |

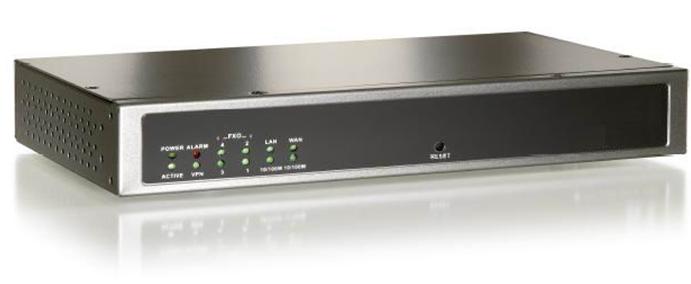

 | 電話節費 (EP540) 4PORT FXO/FXS 主要規格 : 4FXO The EP540 IP PBX is an embedded Voice over IP (VoIP) Server with Session Initiation Protocol (SIP) to provide IP extension phone connection for global virtual office of small-to-medium business (SMB) companys. Equipped with 4 x FXO ports, Ethernet LAN and WAN ports plus Life Line feature, EP540 combines the telephony network and the data network into a manageable converged network. EP540 IP PBX works with various IP phones (Desktop, WiFi, Bluetooth, and DECT), VoIP gateways, and analog telephone adapters (ATA) to route calls among client phones, analog phones, and PSTN network. Call features such as conferencing, auto attendant, and voicemail can be seamlessly enabled to all phone devices. In addition, it also provides Internet access to all LAN devices through VPN NAT router. EP540 IP PBX provides call control and media relay services to SIP clients, and it performs the following primary functions: • SIP Registrar • SIP Outbound Proxy with media relay • SIP Gateways (FXO) • SIP PBX for extension calls • Auto attendant Interactive Voice Response (IVR) • Voice Mail IVR • Meet-Me Conferencing EP540 IP PBX has a built-in suite of voice applications for supplementary services. This lowers down the total cost of a converged network enabled by EP540 IP PBX than building separated infrastructures for legacy telephony network and data network. In addition, with VPN features for the data network configuration and voice service provisioning, EP540 brings the manageability of both networks together to facilitate administration locally or remotely. Maximum Capacity • 50 extension registrations • 50 voicemail accounts • 20 concurrent calls with RTP | 購買 |

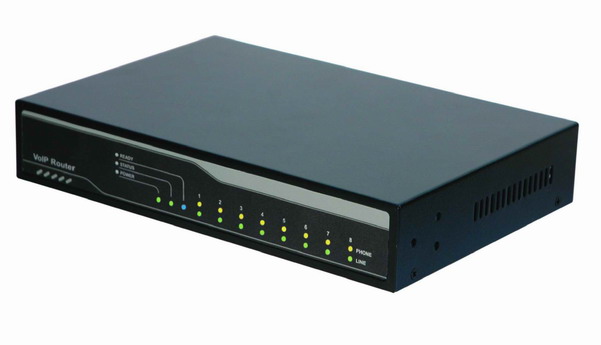

 | 電話節費 (EP16) VOIP Gateway 電話節費,費率表 | 購買 |
 |
